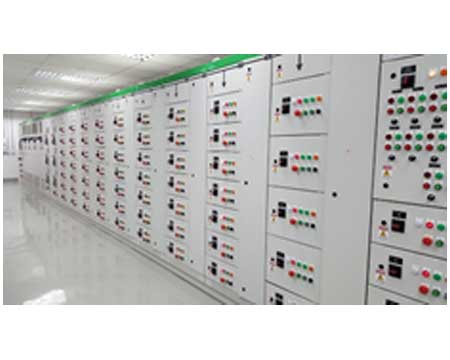

Motor Control Centers Panel
( Draw Out & Fix Type )

About Us 1

Sumeco a leading MCC Panel Enclosure in over a decade has entered into open Market with the launch of Factory Built Draw out & Fix Type panels in the collaboration with highly experienced leading technocrat in this field. Rugged, reliable & safety, true interchangeability are the distinguished features of this design. The design meets technical requirement of all kind of industries such as Cement, Steel Chemical, Fertilizers & many process plants. The designs are capable of accommodating any make of switchgears& are suitable to built intelligent MCC's.

Enquire Now
  • New design provide top and bottom guide along with swivelling lever for easy module withdrawal without tools.
  • Modular construction with wide choice of compartment size.
  • Bolted design and assembly allow ease of alteration of extension at site.
  • Hinged auxiliary door inside main compartment door permit mounting of control accessories, such as meters, selector switch, indicating lamps, push buttons and reset actuator.
  • Further this system improve better utilization of equipment plate and total interchangeability of trolleys.
  • Spring loaded scraping earthling provided with first make and last brake arrangement.
  • Maximum eight numbers auxiliary bus bar center provide in top chamber and segregation from HBB zone.
  • Large cabling space with adequate cable supports, are provided in CBC.
  • Incoming and outgoing stab in type power contacts up to 800Amps. Provide very large range of feeders of different types.
  • Fully compartmentalized design.
  • Draw out trolleys/module incoming and outgoing power and control contacts automatically also late without manual disengagement in three distinct
  • position i.e. service, test isolate.
  • All Draw out units are fully interchangeable.
  • Totally enclosed vermin and dustproof.
  • Safety shouters provided accidental contact from vertical bus bars.
  • Latest design of our draw out enclosure provide maintenance free vertical bus bars with our joint.
  • Main bus bar HBB are approachable from the top.
  • Self aligning and disconnecting power and control contact.
  • Racking Screw arrangement with telescopic rails system provide safe and sure.
  • Smooth movement like Draw out and insertion if module.
